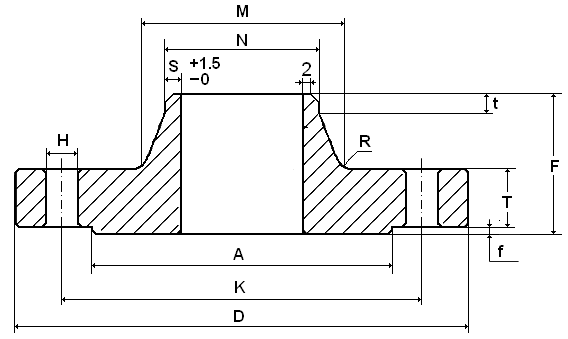

SABS 1123 600/2 WN高颈法兰属于SABS法兰标准体系。是SABS法兰(又称SABS法兰)的其中一种表现形式，是设备或管道上常用的法兰。以下是SABS 1123 600/2 WN高颈法兰中，相关压力下，各部位的全部尺寸及图示，以方便广大法兰从业者查询和参考。
|
压力 |
通径 |
外径 |
中心距 |
孔径 |
孔数 |
小头径 |
盘厚 |
总高 |
焊嘴径 |
大头径 |
R |
水线径 |
水线高 |
壁厚 |
内径 |
|
PN |
DN |
D |
k |
H |
No. |
N |
T |
F |
t |
M |
R |
A |
f |
S |
---- |
|
Nominal pressure 600 kPa |
10 |
75 |
50 |
11 |
4 |
17.2 |
8 |
28 |
6 |
26 |
4 |
35 |
2 |
视详情而定 |
视详情而定 |
|
15 |
80 |
55 |
11 |
4 |
21.3 |
8 |
30 |
6 |
30 |
4 |
40 |
2 |
|||
|
20 |
90 |
65 |
11 |
4 |
26.9 |
8 |
32 |
6 |
38 |
4 |
50 |
2 |
|||
|
25 |
100 |
75 |
11 |
4 |
33.7 |
8 |
35 |
6 |
42 |
4 |
60 |
2 |
|||
|
32 |
120 |
90 |
14 |
4 |
42.4 |
8 |
35 |
6 |
55 |
6 |
70 |
2 |
|||
|
40 |
130 |
100 |
14 |
4 |
48.3 |
8 |
38 |
|
62 |
6 |
80 |
3 |
|||
|
50 |
140 |
110 |
14 |
4 |
60.3 |
8 |
38 |
8 |
74 |
6 |
90 |
3 |
|||
|
65 |
160 |
130 |
14 |
4 |
76.1 |
8 |
38 |
9 |
88 |
6 |
110 |
3 |
|||
|
80 |
190 |
150 |
18 |
4 |
88.9 |
10 |
42 |
10 |
102 |
8 |
128 |
3 |
|||
|
100 |
210 |
170 |
18 |
4 |
114.3 |
10 |
45 |
10 |
130 |
8 |
148 |
3 |
|||
|
125 |
240 |
200 |
18 |
8 |
139.7 |
13 |
48 |
10 |
155 |
8 |
178 |
3 |
|||
|
150 |
265 |
225 |
18 |
8 |
168.3 |
13 |
48 |
12 |
184 |
10 |
202 |
3 |
|||
|
175 |
295 |
255 |
18 |
8 |
193.7 |
13 |
52 |
12 |
210 |
10 |
230 |
3 |
|||
|
200 |
320 |
280 |
18 |
8 |
219.1 |
13 |
55 |
15 |
236 |
10 |
258 |
3 |
|||
|
225 |
345 |
305 |
13 |
8 |
244.5 |
16 |
58 |
15 |
264 |
12 |
285 |
3 |
|||
|
250 |
375 |
335 |
18 |
12 |
273 |
16 |
60 |
15 |
290 |
12 |
312 |
3 |
|||
|
300 |
440 |
395 |
22 |
12 |
323.9 |
20 |
62 |
15 |
342 |
12 |
365 |
4 |
|||
|
350 |
490 |
445 |
22 |
12 |
355.6 |
22 |
62 |
15 |
385 |
12 |
415 |
4 |
|||
|
400 |
540 |
495 |
22 |
16 |
406.4 |
22 |
65 |
15 |
438 |
12 |
465 |
4 |
|||
|
450 |
595 |
550 |
22 |
16 |
457.2 |
24 |
65 |
15 |
492 |
12 |
520 |
4 |
|||
|
500 |
645 |
600 |
22 |
20 |
508 |
24 |
68 |
15 |
538 |
12 |
570 |
4 |
|||
|
550 |
705 |
655 |
26 |
20 |
559 |
24 |
68 |
16 |
590 |
12 |
620 |
5 |
|||
|
600 |
755 |
705 |
26 |
20 |
609.6 |
24 |
70 |
16 |
640 |
12 |
670 |
5 |
